Product description

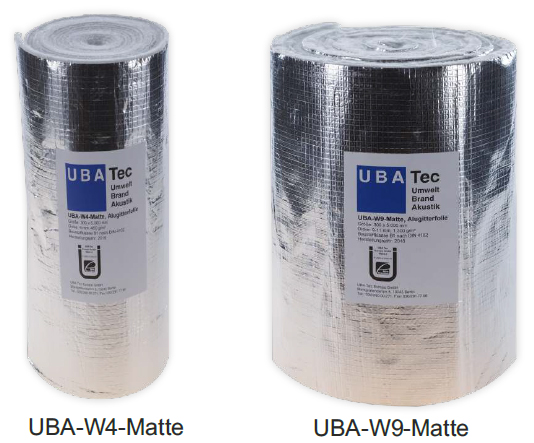

The UBA-W4 mat / UBA-W9 mat is, depending on the insulation thickness, a 4 mm / 9 mm thick aluminum-laminated glass needle mat that is wrapped around the pipe above the ceiling as continuing insulation.

Insert

Pipe sealing R30 to R90 for cast iron pipe with connection of plastic pipe
according to abZ No. Z-19.17-2075

  • Cast iron pipe DN 50 to DN 150 through ceilings
  • Special solutions cast iron pipe DN 50 to DN 100

Pipe penetration seal R30 to R90 for cast iron pipe according to abP No. B-BWU03-I 17.6.1

  • Cast iron pipe DN 50 to DN 150 through ceilings

Detailed information can be found in the usability certificates.

BUY NOW

Dimensions

  • Size: 300 x 5.000
  • Thickness: 4 or 9 mm
  • Basis weight: 350 to 1,300 g/m²
  • Thermal conductivity: λ = 0.035 W/mK

Information

The further insulation (UBA-W4/W9 mat) is only used with component-tested pipe penetration seals (aBg/abP/abZ).

  • Test certificate for the building material: abP No. P-2005-6-2460-03

Download

All construction tasks can not be described in information and representations. We would be pleased to inform you about further applications or advise you for your individual case. Examples of use shown or described cannot take into account the special conditions of individual construction applications and are therefore made without liability. Take advantage of our consulting service.

Technical changes, errors and misprints excepted. Verifications of usability and regulations must be observed. In all other respects, our Terms and Conditions of Delivery and Payment shall apply as amended from time to time. Copyright UBA Tec Europa GmbH.
